NissanVanette SerenaKVC2301.1997 - 01.1998Electrics272 - control unit (heater, air conditioner) (Denso)

272 - control unit (heater, air conditioner) (Denso) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ)drive 2WD (two-wheel drive )
Manufacture period01.1997 - 01.1998grade FXtransmission AT (automatic transmission )


Scheme 272A_001 Scheme 272A_002 Scheme 272C_001 Scheme 272C_002
Applies for modelsManufacture periodSpec

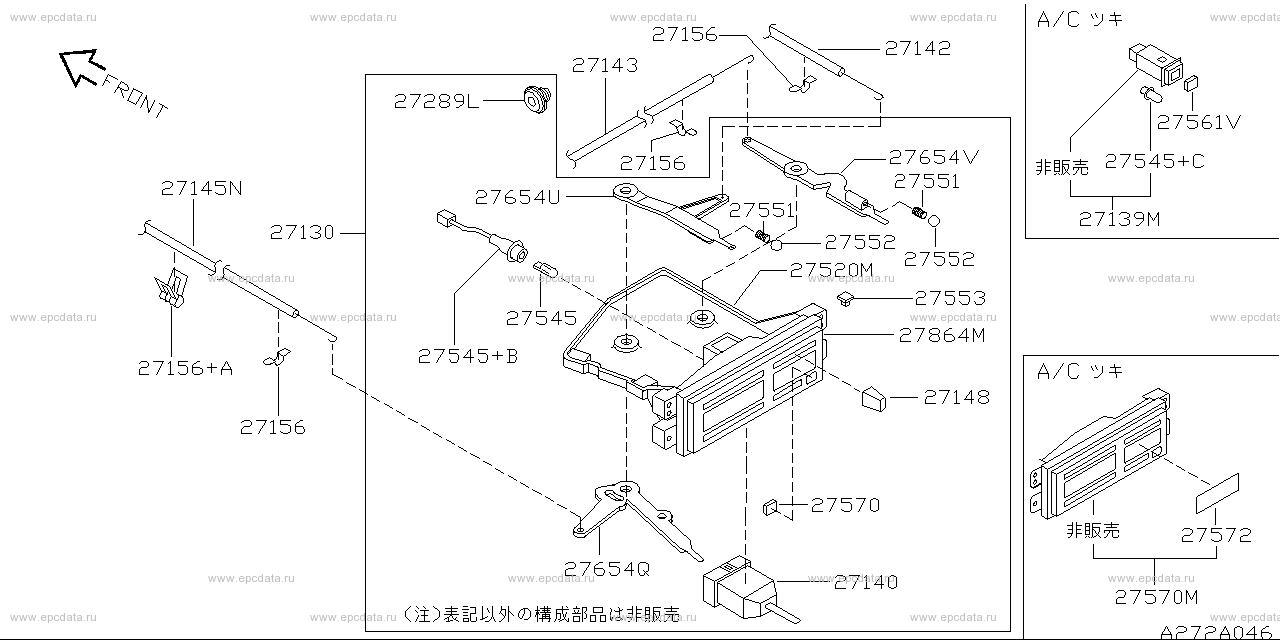

*W.FX01.1997 - 01.1998front ﾋｰﾀｰ & ｴｱｺﾝ control (manual)
*W.FX201.1998 - ...front ﾋｰﾀｰ & ｴｱｺﾝ control (manual)

Open full screen pictureOpen full screen picture
Up to the top

27130 - control assembly
27139M - switch assembly, air conditioner
27140 - switch, fan
27142 - cable, control mode door
27143 - cable, control air intake door
27145N - cable, temperature control
27148 - knob, control
27156 - clamp, cable
27156+A - clamp, cable
27289L - grommet
27520M - base, control
27545 - lamp assembly, heater control
27545+B - lamp assembly, heater control
27545+C - lamp assembly, heater control
27551 - spring
27552 - ball
27553 - plate
27561V - button, auto air conditioner
27570 - mask assembly, control
27570M - finisher assembly, control
27572 - panel, finisher
27654Q - lever, temp control
27654U - lever, mode
27654V - lever, intake
27864M - finisher, control
Applies for modelsManufacture periodSpec

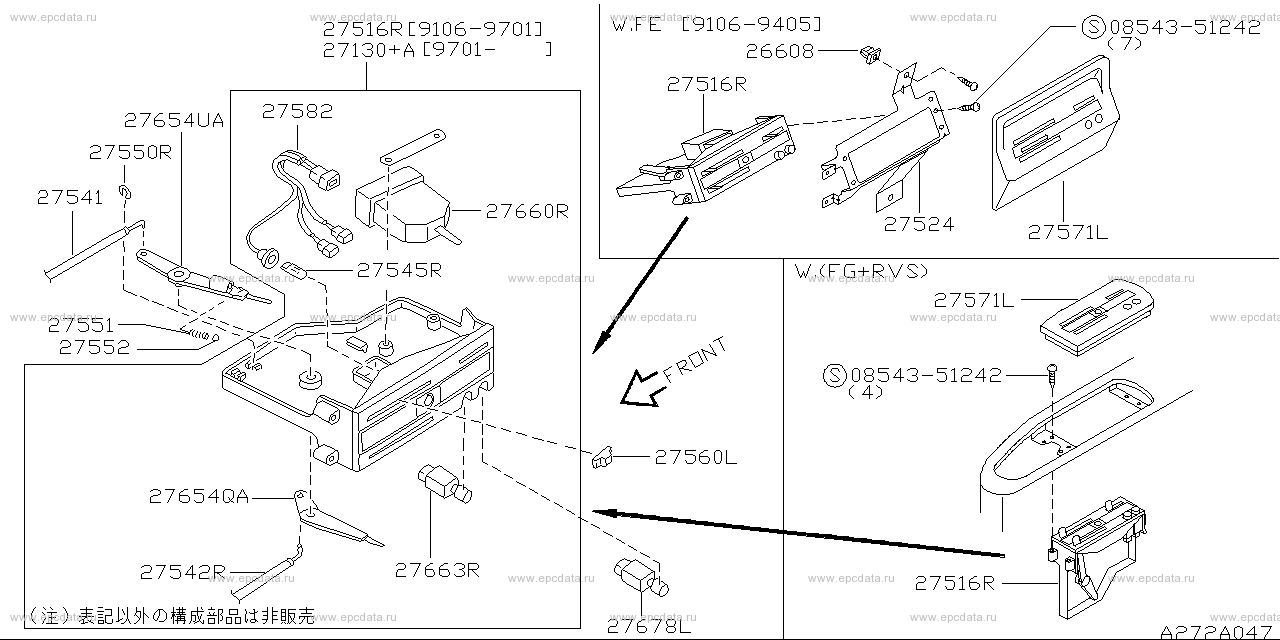

*W.FX01.1997 - 01.1998rear ﾋｰﾀｰ control (manual)
*W.FX201.1998 - ...rear ﾋｰﾀｰ control (manual)

Open full screen pictureOpen full screen picture
Up to the top

0854351242
26608 - grommet, screw
27130+A - control assembly
27516R - control assembly, rear heater
27524 - bracket, rear heater control
27541 - cable, mode control
27542R - cable, temp control rear
27545R - valve assembly, control
27550R - clip, cable
27551 - spring
27552 - ball
27560L - knob, control
27571L - finisher, control rear
27582 - harness, control rear
27654QA - lever, temp control
27654UA - lever, mode
27660R - switch assembly, fan
27663R - switch assembly, fan rear heater
27678L - switch assembly, rear air conditioner
Applies for modelsManufacture periodSpec

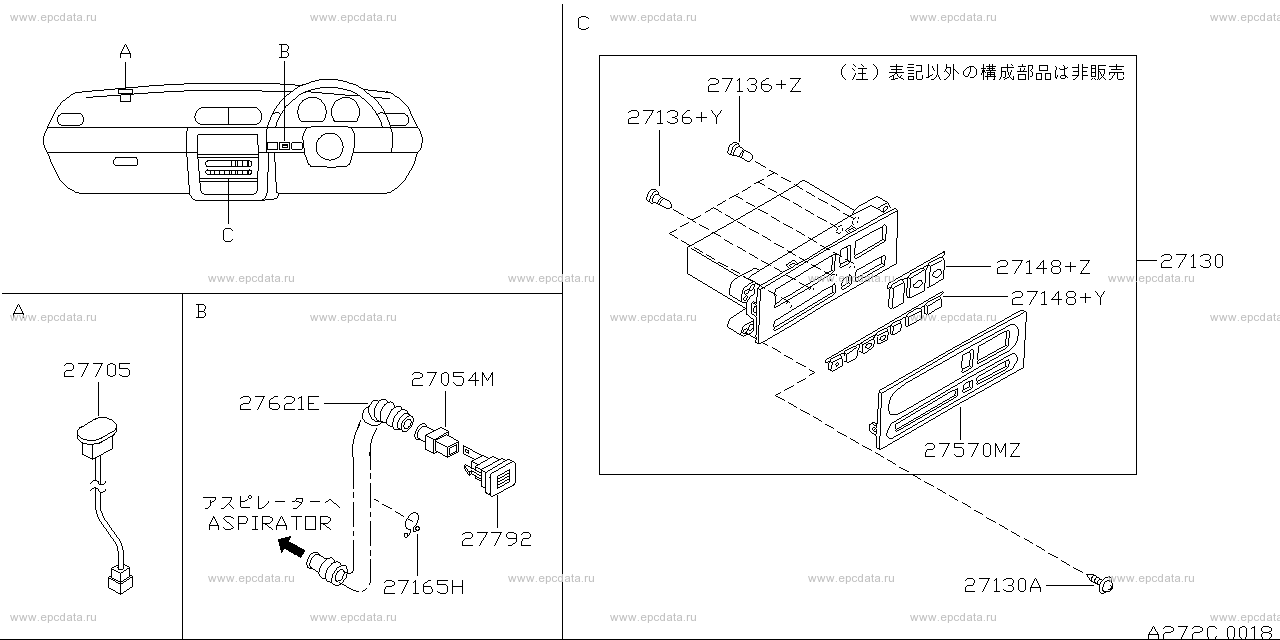

W.(FX+FX/R+SX+PX)08.1995 - 01.1997フロント エアコン コントロール
W01.1997 - 01.1998フロント エアコン コントロール
W01.1998 - ...フロント エアコン コントロール

Open full screen pictureOpen full screen picture
Up to the top

27054M - sensor, in-car
27130 - control assembly
27130A - screw
27136+Y - valve assembly, control
27136+Z - valve assembly, control
27148+Y - knob, control
27148+Z - knob, control
27165H - clip
27570MZ - finisher assembly, control
27621E - duct, aspirator
27705 - sensor assembly, sun
27792 - finisher, in-car sensor
Applies for modelsManufacture periodSpec

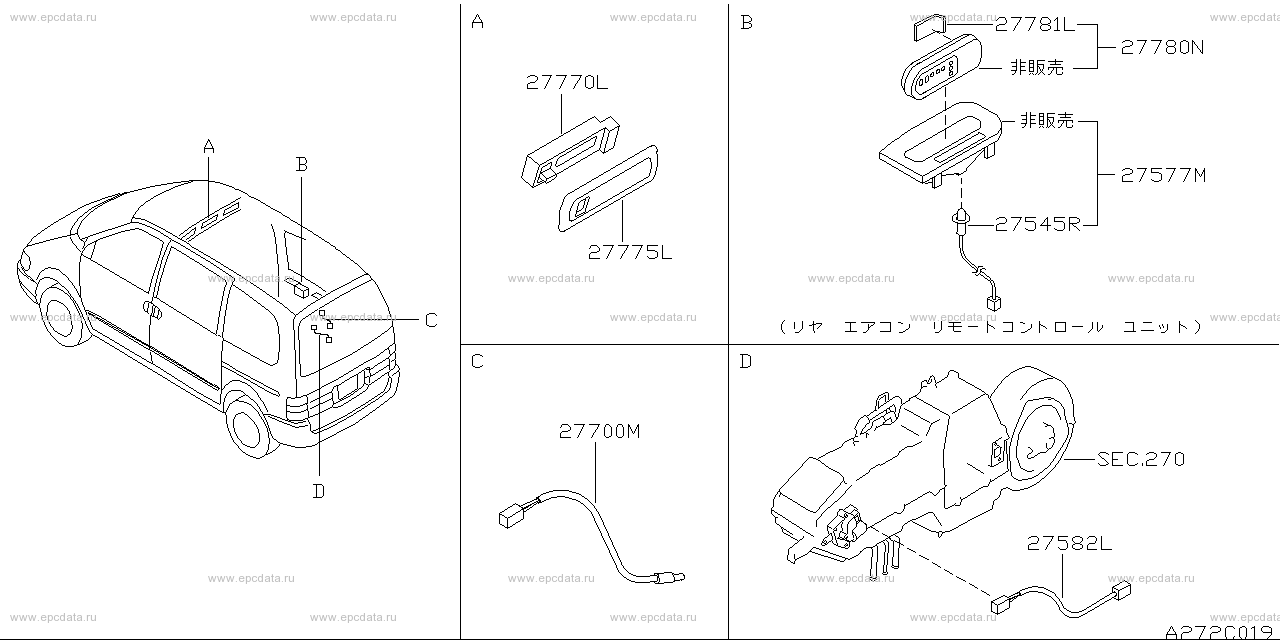

W.(FX+FX/R+SX+PX)08.1995 - 01.1997リヤ Ａ／Ｃ コントロール
W01.1997 - 01.1998リヤ Ａ／Ｃ コントロール
W01.1998 - ...リヤ Ａ／Ｃ コントロール

Open full screen pictureOpen full screen picture
Up to the top

27545R - valve assembly, control
27577M - holder assembly, rear air conditioner remote control
27582L - harness, control rear air conditioner
27700M - sensor assembly, in-car rear
27770L - display, rear auto air conditioner
27775L - finisher, display rear auto air conditioner
27780N - remote control, rear auto air conditioner
27781L - cover, remote control
